Data Lineage Diagrams

A Data Lineage diagram answers a question every architect gets asked and few models can answer: where did this data actually come from, and who else is using it?

Pick any part of the solution that touches data — an application, a service, an API, a report — and ArchRepo traces the data backwards to its origin and forwards to everyone who consumes it, one piece of data at a time.

What the Diagram Shows

The item you chose sits in the middle. Everything to its left is upstream — the chain of things that produced the data it reads. Everything to its right is downstream — everything that goes on to use the data it writes.

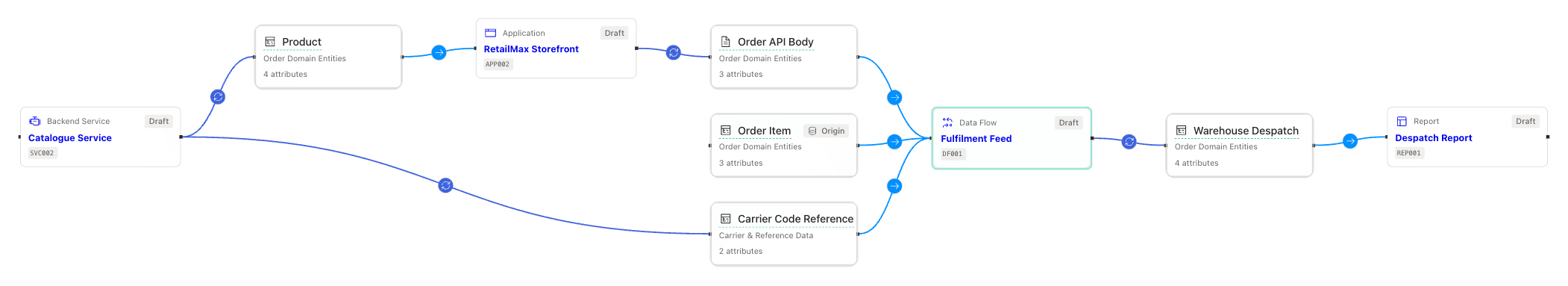

The diagram above is a simplified concept. Here is a real one, traced live from a project’s model — RetailMax’s Fulfilment Feed, showing the full journey from catalogue to despatch reporting:

The chain alternates between two kinds of box:

• Specifications — the applications, services, APIs, data flows, reports, UI components and data migrations that do something with the data. Each shows its type, its reference and its status.
• Data entities — the individual table, message, document or record structure being passed along, with the Data Set it belongs to and how many attributes it has.

Every connection is labelled with what that specification does to that entity:

Badges on the Boxes

Controls

• Item selector — on the project Diagrams tab, choose which item to trace from. Items are grouped by type, then by category.
• Entity filter — an item usually touches several entities at once, which makes a busy picture. Narrow the diagram to a single entity to follow one thread cleanly.
• Expand carriers — by default ArchRepo hides pass-through transport hops (a data flow or stream that simply carries data without changing it) so the picture shows the things that actually act on the data. Turn this on to see the literal transport path. It is greyed out when there is nothing hidden.
• Download — saves the current view as an image.

Why It Is Useful

Answering “where does this field come from?” in seconds. This is normally an archaeology exercise across spreadsheets, source code and whoever has been there longest. If the model is populated, the answer is a diagram.

Impact analysis before you change anything. Before you retire a service, change a message format or add a column, the downstream half of the diagram tells you exactly who is going to feel it. That list is difficult to be confident about any other way, and expensive to get wrong.

Faster incident and data-quality triage. When a number on a report is wrong, the upstream chain is the shortlist of places the fault can be. You work back along the chain rather than guessing.

Evidence for governance and compliance. Data protection, financial and regulatory reviews all ask for provenance: where personal or regulated data originates, what transforms it, and where it ends up. The diagram is that evidence, derived from the design rather than written up separately after the fact.

Finding the gaps in your own design. An Imprecise badge means an item is linked to a whole Data Set but has no Data Use & Mapping rows for it, so nobody has said which entities inside it that item actually touches. An entity with no writer upstream means nothing in the design produces the data something else depends on. Lineage exposes both, and both are cheaper to fix at design time.

Getting Data onto the Diagram

The diagram can only show what the model has been told. Lineage is built from the data uses recorded on your specifications — nothing is inferred from names, and a plain relationship between two items is not enough on its own.

There are three steps.

1. Model the entities inside your Data Sets

Lineage connects specifications through entities, so the entities have to exist first. In each Data Set, use the built-in data modeller to define the entities — tables, JSON structures, message payloads, file layouts — that the data set contains.

A Data Set with no entities modelled can never carry a lineage chain.

2. Record what each specification reads and writes

On any specification that touches data, open the Data Use & Mapping section and choose New Data Usage. You will be asked:

1. Does this item just read the data, or can it modify the data? — Read-Only or Updates Data. This is what puts the arrow labels on the diagram, and it decides which side of the chain the item lands on.
2. Which Data Set is the data entity in?
3. Which data entity does it read or update? — this is the step that matters most, and the row cannot be saved without it. The chain joins up entity by entity, so this is the answer that connects your item to everything around it.
4. An optional summary of how the data is used.

Repeat for every entity the specification touches. The chain joins up wherever one item writes an entity that another item reads.

3. Record transformations where data is reshaped

Where a specification takes data in one shape and produces it in another, record a transformation rather than separate read and write rows. Choose New Transformation, give it a name — Order Flattening, Address Standardisation — and then list, in one place, every entity it touches:

Transformations are what let lineage cross a change of shape. Without them, the entity that comes out looks unrelated to the entities that went in, and the chain stops there.

You can go further and map individual attributes — which source field becomes which target field, and whether it is copied, transformed, looked up, split, merged or ignored. That detail drives the Data Mapping diagram; lineage itself only needs the entity-level Sources, Targets and Reference data.

Which Item Types Can Carry Data Uses

Only the specification types that genuinely act on data have a Data Use & Mapping section, and only those types get a Data Lineage tab:

APIs · Applications · Backend Services · Data Flows · Data Migrations · Reports · UI Components

Data Sets themselves are not on this list. A Data Set is the data being traced, not something that acts on it.

Where to Find It

Across the project — the project’s Diagrams tab, then Data Lineage in the switcher. Choose any eligible item to trace from. This is the view for open-ended exploration.

On a single item — the Data Lineage tab on any API, Application, Backend Service, Data Flow, Data Migration, Report or UI Component. It shows the same diagram already focused on the item you are looking at, so the answer sits next to the specification it is about.

When the Diagram Is Empty
